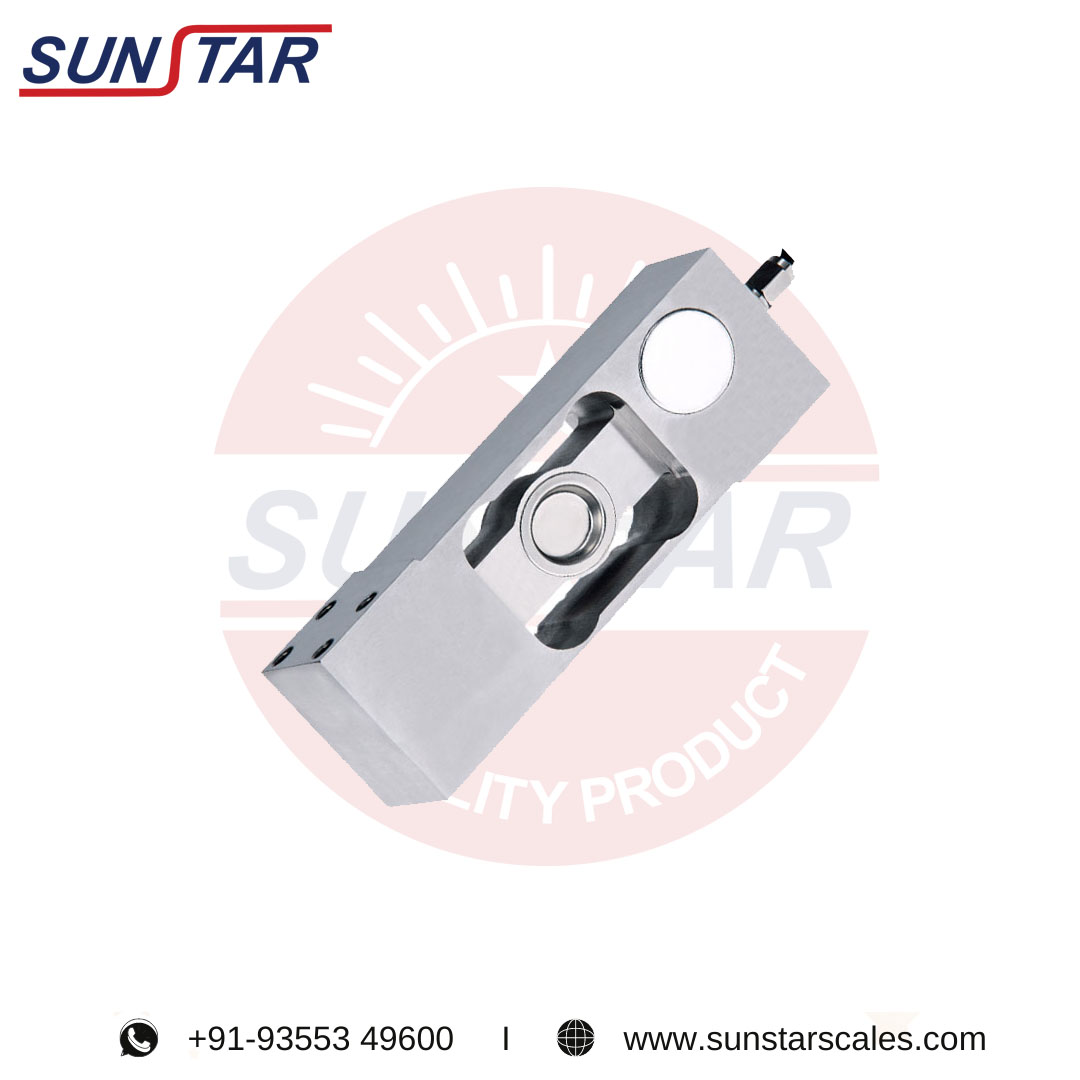

Single Point Loadcells Type 2

Features:

Standard Capacities:- 100, 150 -Kgf

Excitation Voltage:- 10VDC-Max. 15VDC

Normal Output:- 2.0 mV/V

Non Linearity:- < ± 0.025% FSO

Hysteresis:- < ± 0.02% FSO

Non Repeatability:- < ± 0.01% FSO

Creep (30 minutes):- < ± 0.03% FSO

Zero balance:- ± 1.0% FSO

Input Resistance:- 400 ± 15 Ohms

Output Resistance:- 350 ± 5 Ohms

Insulation Resistance (50VDC):- > 1000 Mega Ohms

Cable Length (4 Core Screened):- 250 Cm.

Safe Overload of Related Capacity:- 150%

Ultimate Overload of Rated Capacity:- 200%

Temp Compensated Range:- 0-60ºC

Temprature Effect on Output:- < 0.0015% FSO/ºC

Temprature Effect on Zero:- < 0.0020% FSO/ºC

Platter Size:- 400mm x400mm

Eccentric Load Effect:- < 0.02% of FSO at 1/3 rated load placed within the specified sized platter

Deflection:- < 0.5mm at FSO

Tightening Torque:- 2 m.Kg

Finish & Alluminium Alloy

Construction lP65

Environmental Protection Class:- Bench, Counting Postal Scales, Check Weighers
