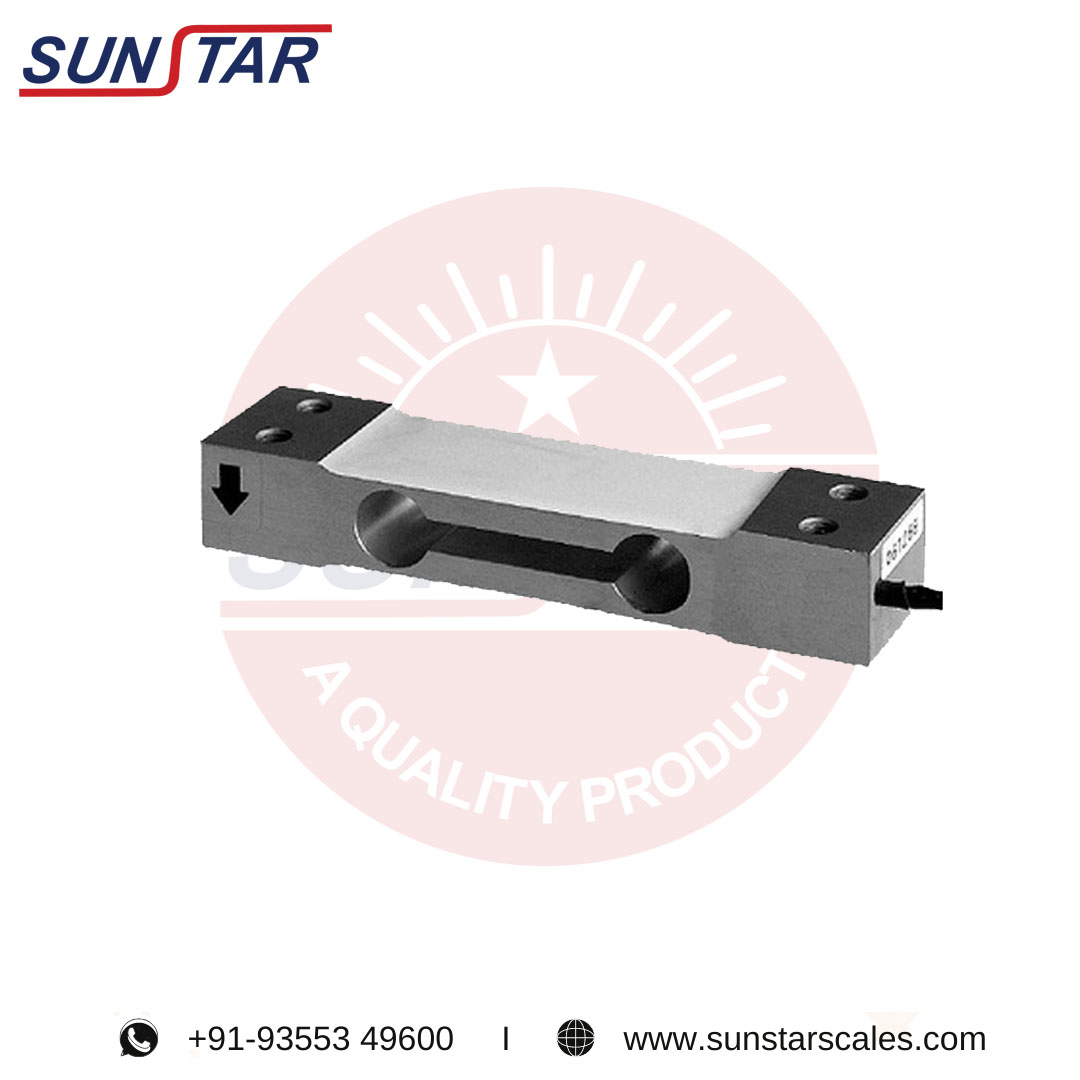

Single Point Loadcells Type1

Specifications:

Standard Capacities:- 1,3,5,10,20-Kgf

Excitation Voltage:- 10 VDC-Max. 15 VDC

Normal Output:- 2.0 m V/v ±10%

Non Linearity:- <±0.03% FSO

Hysteresis:- <±0.03% FSO

Non Repeatability:- <±0.05% FSO

Creep (30 minutes):- <±0.03% FSO

Zero balance:- 0.5 mV/V

Input Resistance:- 400 ±10 Ohms

Output Resistance:- 350 ±10 Ohms

Insulation Resistance (50VDC):- > 2000 Mega Ohms

Cable Length (4 Core Screened):- 35 CM +10% -0%

Safe Overload of Related Capacity:- 150%

Ultimate Overload of Rated Capacity:- 300%

Allowable Side Load:- --

Side Load Discrimination:- --

Temp Compensated Range:- -10°~50°C

Temprature Effect on Output:- 0.05% FSO 10 /ºC

Temprature Effect on Zero:- 0.05% FSO 10 /ºC

Finish & Aluminum Alloy

amp:- Aluminum Alloy

Construction:- IP65
