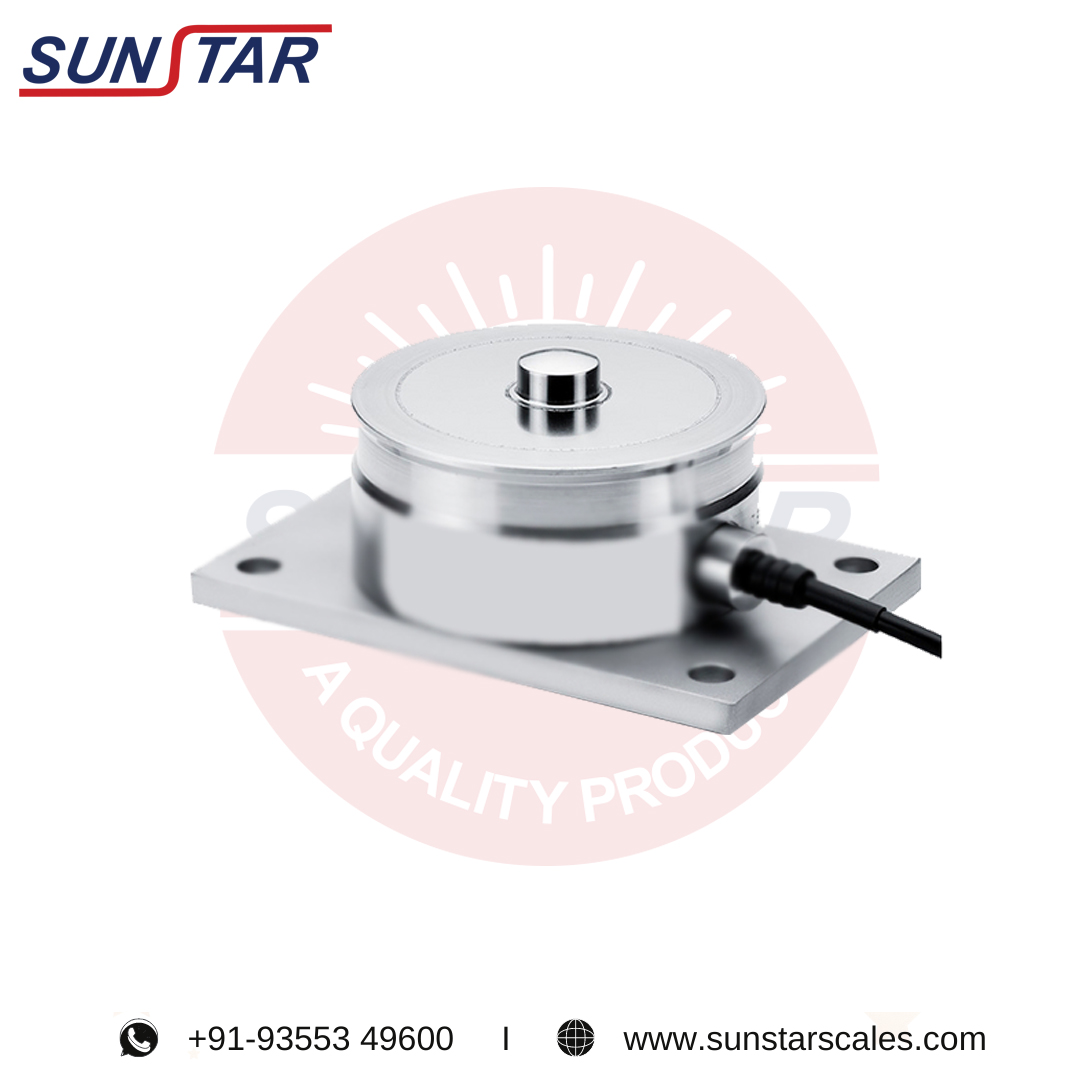

Compression Loadcells

Specifications:

Standard Capacities:- 7.5, 15, 22.5, 30, 40, 50, 100, 150, 300,-Tf

Excitation Voltage:- 5VDC-Max. 15VDC

Normal Output:- 2.0 mV/V+ 0.1%

Non Linearity:- < ± 0.025% FSO

Hysteresis:- < ± 0.02% FSO

Non Repeatability:- < ± 0.01% FSO

Creep (30 minutes):- < ± 0.06% FSO

Zero balance:- < =± 5.0% FSO

Input Resistance:- 1150 ± 15 Ohms

Output Resistance:- 1000 ± 2 Ohms

Insulation Resistance (50VDC):- > 5000 Mega Ohms

Cable Length (4 Core Screened):- 1800 Cm.

Safe Overload of Related Capacity:- 200%

Ultimate Overload of Rated Capacity:- 300%

Allowable Side Load:- 50%

Side Load Discrimination:- 500..1

Temp Compensated Range:- -10-40ºC

Temprature Effect on Output:- < 0.0020% FSO/ºC

Deflection:- < 0.5mm at FSO

Tightening Torque:- 5 m.Kg

Finish & Electroless Nickel Plated Steel Alloy

Construction:- lP67

Environmental Protection Class:- Tank, Hopper & Truck Weighing, Compressive Force Testing, Industrial Automation
